sbRIO Breakout Board
The sbRIO-96XX Breakout and Development Interface Board was designed for the National Instruments single Board sbRIO-9623 through 9636 Compact Single Board Controller. It provides easy access to the DIO/MIO channels which simplifies developing custom sbRIO applications. We have sold quite a few of these boards domestically and internationally.
The  Breakout Board is a made of high quality four-layer PCB populated with terminal blocks, IDC header connectors, fuse, power indicators, test points and 40-pin female headers plus 40-pin breakaway header for interfacing your customized circuits to external devices. Also included are two mini modular breadboards and mounting hardware. Two version of the breakout board is available for purchase; Full and Lite version.  For more information refer to this article on National Instruments developer's community.

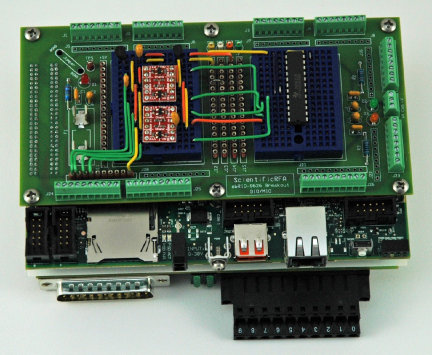

sbRIO-96XX series DIO/MIO Breakout and Development Board

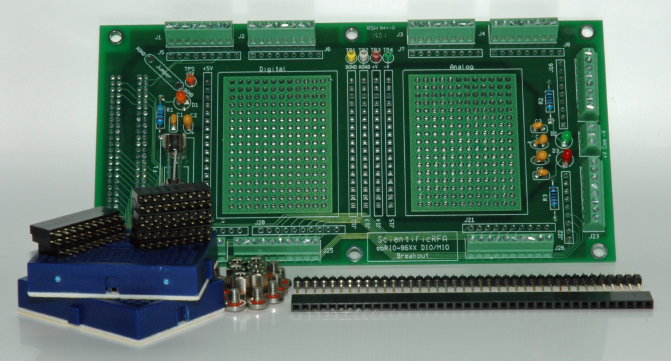

sbRIO Breakout Board Full Version.

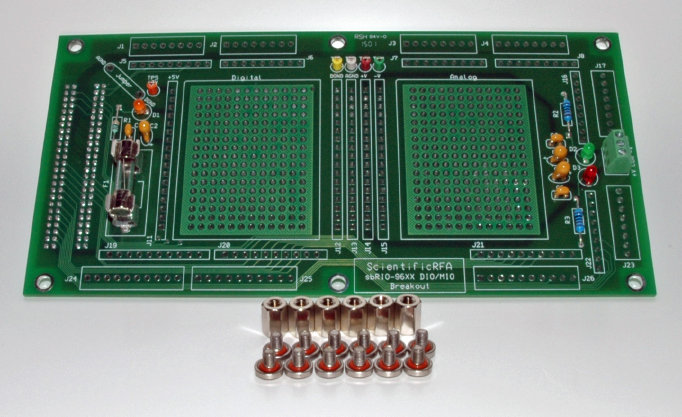

sbRIO Breakout Board Lite Version.
