The prototype of 150-watts RF generator can operate as Stand-alone in manual mode, or can be programmed via an external data acquisitioning system such as National Instruments Compact RIO FPGA systems or similar products for higher flexibility and ease of operation.



Standalone mode: Provides up to 150 watts of pure sinewave at 380/480KHz (fixed) RF energy that can be adjusted through front panel knob. It also provides parameter monitoring such as Power, Impedance and ablation time. Figure 1, depict the simplified block diagram of the 150W RF generator system in Auto and Manual modes.



 Auto mode Features:

      ·         Programmable frequency from 380KHz up to 480KHz at 1Hz resolution

·        Programmable power control from fraction of a watt up to 150 watts

·         Programmable Impedance setting from 25 up to 500 Ohms or any desired value sets by the operator

·         Programmable ablation time from 1 second up to any value set by the operator

·        Mono or bipolar operation



Operational modes:

·    Temperature, Power, Impedance, pulse or combination of all

·         Parameter monitoring including, Power, Impedance, Current, Temperature and Pulse Width

·         Ease of graphical programing in LabVIEW FPGA technology as well as MATLAB or other scientific programming languages

·         Elaborate set of data collection/playback and analysis utilities

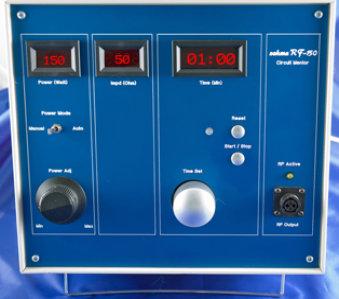

150W RF Generator
Radio Frequency Ablation Technology

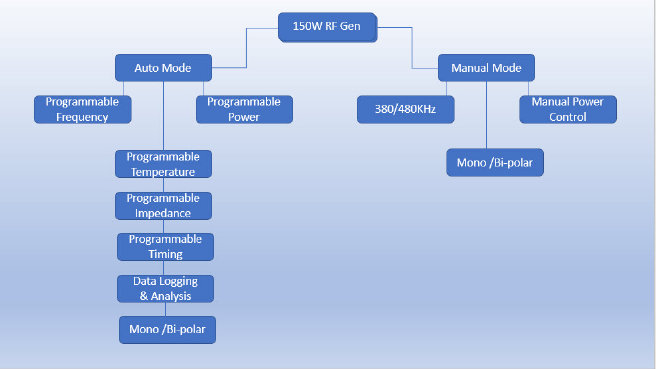

Figure 1, Auto Mode vs Manual Mode
Using NI graphical programming. Figure 2, depict Single electrode ablation in Auto mode. Figure 3, cardiac tissue ablation using Multi-electrodes catheter and ECG data monitoring. Figure 4, tissue thermal modeling.

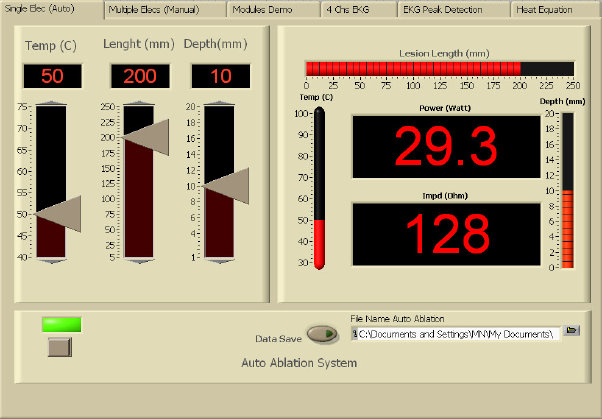

Figure 2, Single Electrode Ablation in Auto mode

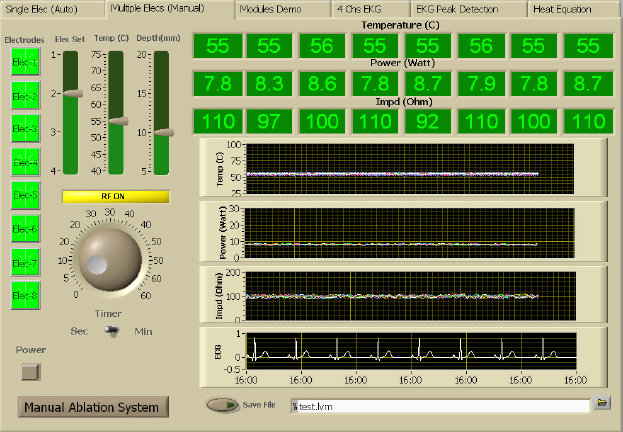

Figure 3, Multi Electrode Ablation on Cardiac Tissue

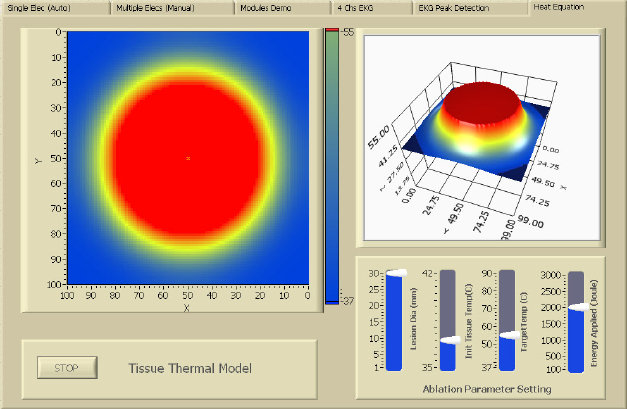

Figure 4,Tissue Thermal Modeling
Possible ablation procedure scenarios:
